High Precision Structur Grain Bucket Elevator With Adjustable Speed Motor

Name: High Precision Structur Grain Bucket Elevator With Adjustable Speed Motor
Brand: Green Eco-Equipment
Price: 1 USD

Brand Name : Green Eco-Equipment

Certification : ISO9001:2008/CE

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 10~15 work days after receiving fullpayment.

Packaging Details : In Bulk/Tray/Wooden Case/As Customer's Requirement

Warranty : 2 years

Material Feature : Heat Resistant

Motor Type : Adjustable speed motor

Application : Manufacturing Plant, Farms, Construction works , Energy & Mining

After-sales Service Provided : Field installation, commissioning and training

Capacity : As customer's requirement

Contact Now

Customized Vertical Belt Bucket Elevator Equipment For Cement Mining

Product Description

Bucket Elevator is used to elevate material vertically from a lower level to a higher level., which is widely used in grain, building material, chemical, and food industry, with characteristics of energy saving and high efficiency Larger sizes and models with special features are always available on request to fit your needs. Our engineering department is ready to help you design the right equipment to meet the special needs of your application

Our company also can design and manufacture special models based on your needs.

Main Parameters

Model	Max. Feed Granularity	Capacity	Scoop bucket				Width of Conveyor Belt	Hoisting Height

			Width	Distance	Capacity	Speed
	(mm)	(m3/h)	(mm)	(mm)	(L)	(m/s)	(mm)	(m)
TD160	25	5.4-16	160	280, 350	0.5-1.9	1.4	200	< 40
TD250	35	12-35	250	360, 450	1.3-4.6	1.6	300
TD315	45	17-40	315	400, 500	2-5.8	1.6	400
TD400	55	24-66	400	480, 560	3.1-9.4	1.8	500
TD500	60	38-92	500	500, 625	4.8-15	1.8	600
TD630	70	85-142	630	710	14-23.5	2	700

Principle

Vertical Cement Belt Bucket Elevator is composed of machine head, main frame,Maintenance cylinder, vents Ventilators, dustpan, dustpan belt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.

1.Firstly, the materials are evenly fed into the dustpan on the machine base;

2.Secondly, the materials are elevated into the machine head;

3.Thirdly, the raw materials are dumped into the targeted machine.

Main Advantages

1. Large throughput, high lift height.

2. The transmission device is equiped with vertical shaft reducer and hydraulic coupler, as well as the reverse stop device, which can make the transmission device compact and flexible.It can not only make the equipment run smoothly, but also protect the motor reducer and traction parts, and also keep the material in stable state when it is stopped.

3. Long service life, good operational reliability, and the failure-free time can exceed 30,000 hours.

4. High-precision structure, high strength and nice appearance.

5. The equipment adopts the heavy hammer tensioning device, which has constant tensioning force and can help avoid the belt slipping, thus ensuring the normal operation of the equipment.

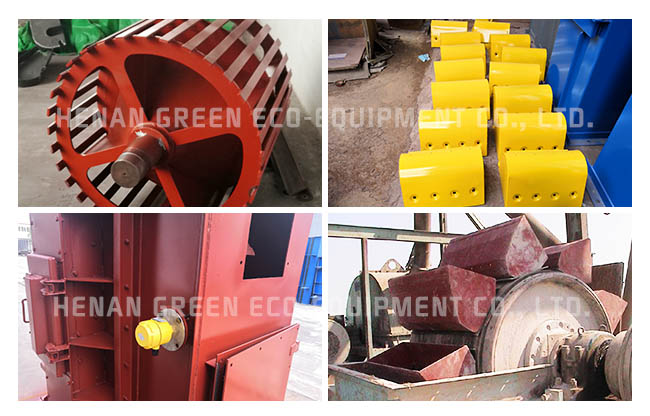

Details Show

High Precision Structur Grain Bucket Elevator With Adjustable Speed Motor

Package and Shipment

High Precision Structur Grain Bucket Elevator With Adjustable Speed Motor

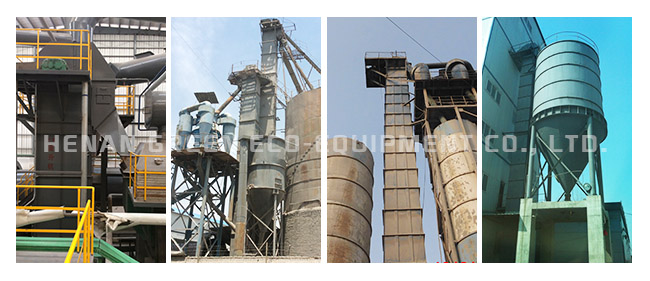

Project Case

High Precision Structur Grain Bucket Elevator With Adjustable Speed Motor
