Durable Apron Belt Conveyor Machine For Big Chunk Stone Ore 20-800t/H

Name: Durable Apron Belt Conveyor Machine For Big Chunk Stone Ore 20800tH
Brand: Green Eco-Equipment
Price: 1 USD

China Durable Apron Belt Conveyor Machine For Big Chunk Stone Ore 20-800t/H wholesale

Brand Name : Green Eco-Equipment

Certification : ISO9001:2008/CE

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 10~15 work days after receiving fullpayment.

Packaging Details : In Bulk/Tray/Wooden Case/As Customer's Requirement

Material : Cast Steel

Material Feature : Heat Resistant

Capacity(t/h) : 20-800t/h

Type : Apron feeder

Suitable Material : Cement, Coal, Gravel, Stone

Application : Construction works, Mining, Power Plant, Metallurgical Industry

Warranty : 2 Years

After-sales Service Provided : Field installation, commissioning and training

Contact Now

Durable Apron Feeder Chain Plate Conveyor Machine For Big Chunk Stone Ore

Product Description

Durable Apron Feeder Chain Plate Conveyor Machine is used to feed block or granule materials from material storage to a charging device evenly and continuously. Used to achieve an even feeding for crushers in sandstone production lines, and to make a rough screening of materials, this equipment is widely used in combined operation with crushing and screening machines in a range of industries.

Working Principle

The devices are installed on the bottom of the ore bin outlet, the ore fall onto the leakage board at the chute bottom, the bottom of the leakage board is fixed on the idler, and through the eccentric institutions to connect the leakage board and the reducer together, and then through the coupling lined the motor. During the operation the motor drive the reducer through the coupling, and through the eccentric dish and the leaking plate, which is at the bottom of the frame also between the idlers, to move in reciprocating linear way, and achieve the feed uniformly.

Main Parameters

Model	Plate width	Head to tail shaft center distance	Speed	Feed size	Capacity	Power	Reference weight
Model	(mm)	(mm)	(m/s)	(mm)	(t/h)	(kw)	(kg)
WBL100-6	1000	6000	0.01-0.15	≤500	≤300	18.5	15000
WBL120-6	1200	6000	0.01-0.15	≤600	≤400	22	16000
WBL125-6	1250	6000	0.01-0.15	≤600	≤450	22	18000
WBL140-8	1400	8000	0.01-0.15	≤700	≤500	30	29000
WBL150-10	1500	10000	0.01-0.15	≤1200	≤800	37	49000

Advantages

1. It can bear big pressure under small silo or loader.

2. The speed can be adjusted by frequency conversion control cabinet.

3. Adopting the feed trough, to prevent the material leakage.

4.Good performance-conditioning, no flushing phenomenon of materials

5. It can be matched with ABB, Siemens, Flender and SEW etc if required.

6.Smoothly running and long service life
7. Super-large capacity with combination of crusher equipment
8. Low noise and power consumption

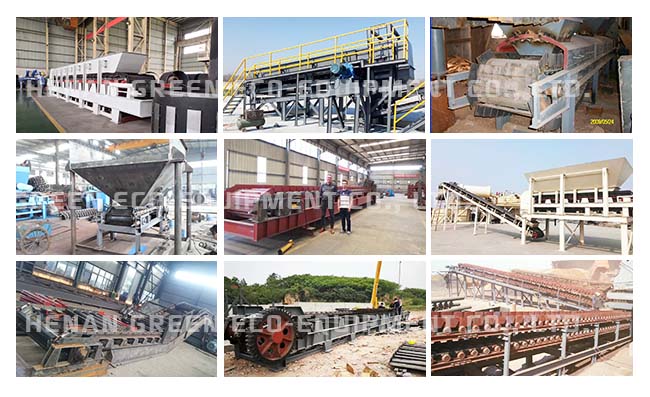

Details Show

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Durable Apron Belt Conveyor Machine For Big Chunk Stone Ore 20-800t/H

Project Case

Durable Apron Belt Conveyor Machine For Big Chunk Stone Ore 20-800t/H
